ASME B16.5 316L 6 Inch Class 600 Stainless Steel Flanges Integral Flange

Name: ASME B165 316L 6 Inch Class 600 Stainless Steel Flanges Integral Flange
Brand: Stainless steel integral flange
Price: 1 USD

Brand Name : Stainless steel integral flange

Model Number : LJ-PF466

Certification : ISO9001

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : Annual output 50000 tons

Delivery Time : Depends on the quantity of goods

Packaging Details : Export standard packaging

Material : SS304 SS316L

Standard : DIN,ANSI,ASTM,GB

Size : Customized Size

Application : Construction,Connect Pipes

Packing : wooden case

Technics : Butt weld

Contact Now

ASME b16.5 316L 6 inch class600 Stainless steel integral flange

Description

Stainless steel integral flange belongs to a kind of butt welded steel pipe flange with neck. In various domestic standards, if is used to represent the integral flange. It is mostly used in pipelines with high pressure. The production process is generally casting. The pipe end of integral flange is thicker than that of butt welding flange, and the internal diameter of integral flange is the same as the nominal diameter except for PN1.6MPa and dn450.

Specification

Size:1/2" to 48"
Pressure Class:150-2500LBS
Standard:ANSI,DIN,GB,ASME
Material Grade:304/ 304L/ 316/ 316L

Technical data shee

ASME b16.5 316L 6 inch class600 Stainless steel integral flange technical data sheet as below:

Nominal diameter	size(mm)
Nominal diameter	diameter D	D1	Bolt hole diameter	D2	f
10	90	60	14	41	2
15	95	65	14	46	2
20	105	75	16	56	2
25	115	85	16	65	3
32	140	100	18	76	3
40	150	110	18	84	3
50	165	125	20	99	3
65	185	145	20	118	3
80	200	160	22	132	3
100	220	180	24	156	3

Characteristic

Stainless steel integral flange is generally raised surface (RF). If it is used under flammable, explosive, high and extremely hazardous conditions, the sealing surface of convex concave surface (MFM) and tenon groove surface (TG) other than RF surface can be selected.

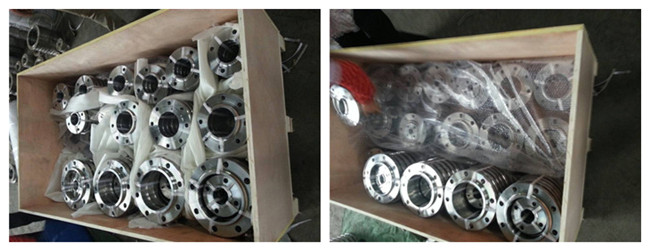

Package
