ASME B16.28 ASTM A815 3inch 304 316L Stainless steel 304 elbow
Description
Stainless steel 304 elbow is a pipe fitting product made of 304 stainless steel plate or pipe. It is an elbow classified by material and independent of production process. The product is widely used in many industries, such as some mechanical equipment industries or pharmaceutical industries.
Specification
Size:Seamless 1/2" To 24"
Thickness:Sch10-Sch160 XXS
Standard:3A / DIN / SMS / ISO
Connetion:Welded, Clamped, Union
Material:ASTM A403 WP304,304L,316,316L
Technical data sheet
ASME B16.28 ASTM A815 3inch 304 316L Stainless steel 304 elbow technical data sheet as below:
| Nominal diameter | outside diameter | Dimension from center to end face | Center to center dimension |
| 45°elbow | 90°elbow | 180°elbow |
| Series A | Series B | Long radius | Long radius | Short radius | Long radius | Short radius |
| 15 | 21.3 | 18 | 16 | 38 | - | 76 | - |
| 20 | 26.9 | 25 | 16 | 38 | - | 76 | - |
| 25 | 33.7 | 32 | 16 | 38 | 25 | 76 | 51 |
| 32 | 42.4 | 38 | 20 | 48 | 32 | 95 | 64 |
| 40 | 48.3 | 45 | 24 | 57 | 38 | 114 | 76 |
| 50 | 60.3 | 57 | 32 | 76 | 51 | 152 | 2 |
| 65 | 76.1(73) | 76 | 40 | 95 | 64 | 191 | 127 |
| 80 | 88.9 | 89 | 47 | 114 | 76 | 229 | 152 |
| 100 | 114.3 | 108 | 63 | 152 | 2 | 305 | 203 |
| 125 | 139.7 | 133 | 79 | 190 | 127 | 381 | 254 |
Characteristic
Stainless steel 304 elbow adopts stainless steel 304 plate or 304 pipe as raw material. SS304 stainless steel is a common stainless steel material with a density of 7.93g/cm ³, High temperature resistance, good processability, high toughness and good mechanical properties.
Stainless steel 304 elbow is produced by several different production processes, such as pushing, cold pressing, hot pressing, welding and so on. The post-treatment is roughly the same. After shot peening, remove the oxide layer on the inner and outer surfaces of the elbow, and use the beveling machine to groove both ends, so as to facilitate the treatment steps of later welding.
Application
Stainless steel reducer is widely used in pipeline engineering fields such as heating, heating, water conveyance, petroleum, chemical industry, natural gas, heat, sewage treatment, water source, bridge, steel structure, marine water conveyance and piling.

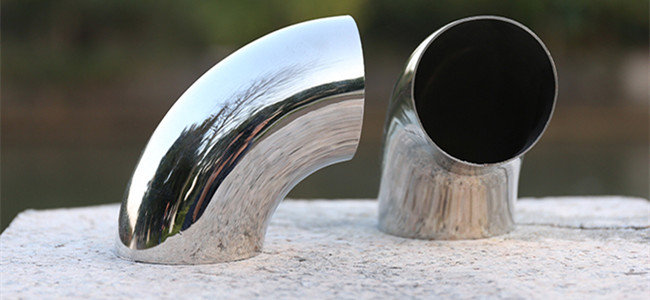

Product picture
