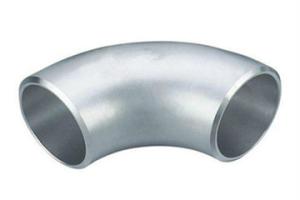

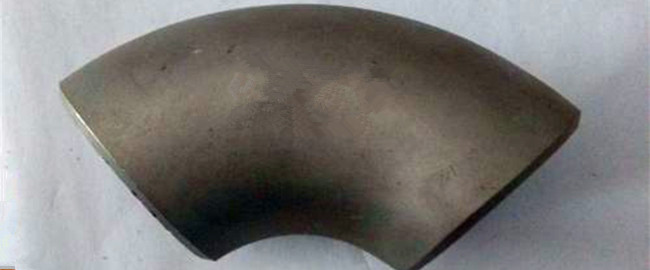

Stainless Steel Pipe Fittings 304 stainless steel elbow
Description
304 stainless steel elbow has been widely used in many fields because of many advantages. The stainless steel elbow is made of environmental protection materials, which can meet the health requirements, can be 100% recycled, save water resources, reduce the transportation cost, reduce heat loss, and avoid the pollution of sanitary ware.
304 stainless steel elbow has a long service life. The service life of stainless steel elbow can reach 100 years, at least 70 years, which is as long as that of building. One of the most outstanding advantages of stainless steel elbow is its excellent corrosion resistance, which is the best in all kinds of pipe fittings.
Technical data sheet
Stainless Steel Pipe Fittings 304 stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow |
| A series | B series | Long radius | Short radius |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
| 300 | 323.9 | 325 | 457 | 305 |
| 350 | 355.6 | 377 | 533 | 356 |
| 400 | 406.4 | 426 | 610 | 406 |
| 450 | 457 | 478 | 686 | 457 |
Specification
Standard:GB / ANSI /JIS / DIN
Size:1/8"~2"
Application:Oil,Petroleum,Chemical
Characteristic
304 stainless steel elbow will not have uniform corrosion like carbon steel, so there is no need for protective coating when using; stainless steel material has no limit on the chemical composition of water, because stainless steel has good corrosion resistance in water with various oxygen content, temperature, PH and hardness; stainless steel water pipe can withstand very high flow rate, even if the flow rate is greater than 40 m / s, it still maintains a very low corrosion rate, and is not easy to operate More than 0.003 mm / year, especially suitable for high-rise water supply.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
