Stainless Steel Pipe Fittings Butt welding elbow
Description
Butt welding elbow is made of high-quality steel plate, which is pressed into half ring elbow by stamping die or directly cast into half ring elbow by casting die, and then two half ring elbows are formed by group welding, so it is also called welding elbow. The elbow is made and welded by corresponding process to form a good production standard and performance, and the corresponding material is used to fully show the important performance.
Butt welded elbow is wear-resistant material, accounting for about 85%, in the process of use, should always keep clean, transmission thread must be lubricated regularly, found fault, should immediately stop using, find out the cause, remove the fault. Elbow is used to connect two pipes with the same nominal diameter to make the pipe turn.
Technical data sheet
Stainless Steel Pipe Fittings Butt welding elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow |
| A series | B series | Long radius | Short radius |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
Specification
Standard:GB / ANSI /JIS / DIN
Material:SS304 SS316L
Size:1/8"~2"
Characteristic
Butt welding elbow is used to connect pipe fittings, such as steel strip, profile, wire rod, steel bar, rail, boiler steel pipe, oil and natural gas pipeline. Elbow is used in the assembly and welding of components. Simple rolling, forging, stamping or machining parts are butt welded into complex parts to reduce the cost. For example, butt welding of automobile steering axle housing and rear axle housing, butt welding of various connecting rods and pull rods, and butt welding of special parts, etc.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
Product Tags:
|
|

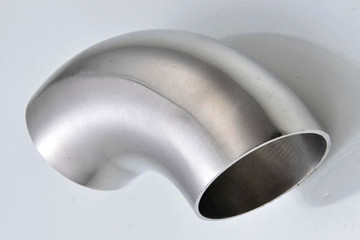

Petroleum SS304 Stainless Steel Butt Welding Elbow Images
|
