Description

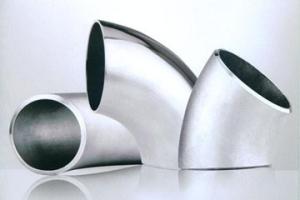

Stainless steel elbow is a kind of pipe fitting mainly made of stainless steel. With the development of economy, the application range of stainless steel pipe fittings is more and more wide. The corrosion resistance of passivation layer on stainless steel surface is analyzed. Combined with the application of advanced production technology and equipment, stainless steel elbow not only meets the needs of daily production and life, but also fills in the domestic blank.
Stainless steel elbow and carbon steel elbow are mainly different in material, so many problems should be paid attention to when using and maintaining stainless steel elbow. Users need to use it in a certain way and maintain it in the right way.
Specification
Standard:DIN,ANSI,ASTM,JIS,GB
Material:SS304 SS316L
Packing:wooden case
Characteristic
Elbows stored for a long time should be inspected in time to keep the exposed surface clean and orderly stored in a ventilated and dry place indoors. Stacking or open storage is strictly prohibited. Elbows must be kept dry and ventilated, kept clean and tidy, and stored according to accurate storage methods.
When installing, the elbow can be directly installed on the pipe according to the connection mode, and the stainless steel elbow can be installed according to the position used. Generally, it can be installed in any position of the pipeline, but it needs to be easy to operate and check.
Technical data sheet
Stainless Steel Pipe Fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow |
| A series | B series | Long radius | Short radius |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
| 300 | 323.9 | 325 | 457 | 305 |
| 350 | 355.6 | 377 | 533 | 356 |
| 400 | 406.4 | 426 | 610 | 406 |
| 450 | 457 | 478 | 686 | 457 |
| 500 | 508 | 529 | 762 | 508 |
| 550 | 559 | - | 838 | 559 |
| 600 | 610 | 630 | 914 | 610 |
| 650 | 660 | - | 991 | 660 |
| 700 | 711 | 720 | 1067 | 711 |
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 35 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
