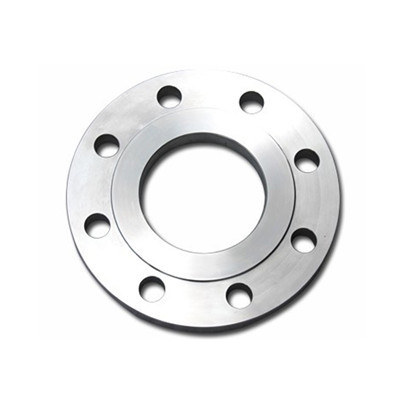

ASTM A182 304 metal pipe fittings Stainless steel PL Flange
Description
Stainless steel PL Flange has the advantages of convenient material acquisition, simple manufacture, low cost and wide application; However, the rigidity is poor, so it shall not be used in the chemical process piping system with requirements of supply and demand, flammability, explosion and high vacuum degree and the occasions with high and extreme hazards. The sealing surface type has plane and convex surface.
Specification
Size:1/2"-60"
Pressure:150#-2500#
Diamater:PN16-PN100
Standard:ANSI, DIN, GB, ASME
Technical data sheet
ASTM A182 304 metal pipe fittings Stainless steel PL Flange technical data sheet as below:
| DN | diameter | Connection size | Flange thickness | inner diameter | Theoretical weight |
| A | B | D | K | L | M | TH | C | A | B | KG |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 4 | M12 | 14 | 22 | 19 | 0.68 |
| 20 | 26.9 | 25 | 105 | 75 | 14 | 4 | M12 | 16 | 27.5 | 26 | 0.94 |
| 25 | 33.7 | 32 | 115 | 85 | 14 | 4 | M12 | 16 | 34.7 | 33 | 1.12 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 4 | M16 | 18 | 43.5 | 39 | 1.86 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 4 | M16 | 18 | 49.5 | 46 | 2.12 |
| 50 | 603 | 57 | 165 | 125 | 18 | 4 | M16 | 20 | 61.5 | 59 | 2.77 |
| 65 | 76.1 | 76 | 185 | 145 | 18 | 4 | M16 | 20 | 77.5 | 78 | 3.31 |
| 80 | 88.9 | 89 | 200 | 160 | 18 | 8 | M16 | 20 | 90.5 | 91 | 3.59 |
| 100 | 114.3 | 108 | 220 | 180 | 18 | 8 | M16 | 22 | 116 | 110 | 4.57 |
| 125 | 139.7 | 133 | 250 | 210 | 18 | 8 | M16 | 22 | 141.5 | 135 | 5.65 |
| 150 | 168.3 | 159 | 285 | 240 | 22 | 8 | M20 | 24 | 170.5 | 161 | 7.61 |
| 200 | 219.1 | 219 | 340 | 295 | 22 | 8 | M20 | 24 | 221.5 | 222 | 9.24 |
| 250 | 273 | 273 | 395 | 350 | 22 | 12 | M20 | 26 | 276.5 | 247 | 11.9 |
| 300 | 323.9 | 325 | 445 | 400 | 22 | 12 | M20 | 28 | 327.5 | 328 | 14.6 |
Characteristic
Stainless steel PL Flange is the most common flange, with pressure of pn2.5, pn6, PN10, PN16 and PN25. The welding form is to insert the pipe into the flange for welding. The materials of flat welding flange include 304,316,316l.
Application
Stainless steel PL Flange is widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light and light industry, refrigeration, sanitation, plumbing and so on.
